currenza c²

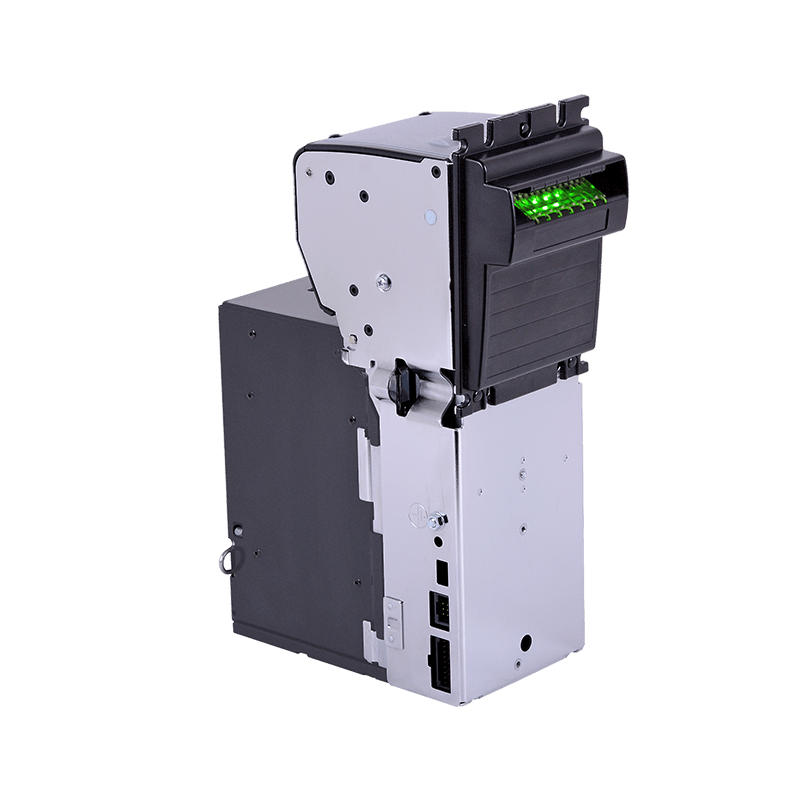

The currenza c²® is a superior coin changer that doubles as a coin recycler. All coins input into the changer are eventually recycled as change to another customer. Known for its distinctive 6-tube system, this coin changer consistently delivers high performance with its unique MFT coin validation technology. The patented Payout Redundancy Protection (PRP) coin dispensing system includes 3 independent payout motors to ensure that coin payout is always guaranteed meaning that no sales are lost.

Available with various coin cassettes, all worldwide coins can be processed. Unique options such as the currenza c² spider, an integrated active 8-way sorting feature, make this coin changer stand-out in the market.

*Please note, this product is not available in Europe*

Benefits

MTF coin validation technology with a patented new sensor system and measuring 40 coin parameters ensures high-security coin validation

6 self-filling coin tubes reduces operator intervention for refilling needs while the c² optimizer provides optimum set-up of payout configuration & float levels for less cash stock in the c²

Payout Redundancy Protection (PRP) offers 3 independent payout motors each controlling 2 tubes therefore, in the unlikely case of a motor jam there are still 4 coin tubes available for payout minimizing machine downtime

Water penetration protection and a highly reliable optical sensor system with industry leading operating temperature range of -25 to +80°C guarantees operation independent of environmental conditions

Specifications

Coin Diameter
15mm - 33mm
Coin Thickness
1.5mm - 3.5mm
Input speed
2 coins per second
Output Speed
6 coins per second
Interfaces Supported
Serial: MDB, MDB + Executive, MDB + BDV, JVI/VCCI ,USB, RS-232
Parallel: 4-price (via converter)
Operating Temperature
-25°C to +80°C
Power Requirements
24 V AC = Executive
18 V DC - 43 V DC = MDB
Tube/coin Level Recognition System
Optical, Sonar
Support Tools
Henri, Henri+
Audit
USB, IrDA

Variants

Audit Interfaces

Audit Interfaces

  • IR, also as external module
  • Bluetooth, also as external module
  • Printer
  • DDCMP
  • DEX, also for external devices e.g. vending machines for external currenza audimax data provider
Integrated 8-coin Payout: currenza c2 spider

Integrated 8-coin Payout: currenza c² spider

  • Recycling of up to 8 coin denominations
  • Increased coin payout capacity by employing two additional h² hoppers
  • Full coin recycling via 6-tube cassette and two hoppers
  • High payout speeds; considerably reduced waiting times at exit lanes
User Interfaces

User Interfaces

  • currenza c² blue with full graphical display and service keys
  • currenza c² green with service keys
  • currenza c² white without user interface
  • currenza c² silver without user interface: German tobacco version exclusively sold by our partner Garz & Fricke

Accessories

Service Tools

Service Tools (currenza c²)

  • HENRI on-site service tool for configuration & firmware updates
  • heartbeat PC application for comprehensive configuration
  • Stand-alone WinSPT vending machine simulator
  • WinSPT PC application for coin acceptance and interface tests
  • HENRIFlash PC application for firmware updates
Audit Tools

Audit Tools

  • currenza audimzx data-provider
  • IR & Bluetooth adapters for audit readout
  • currenza airstation for remote audit reports
  • Audit Manager PC application for machine audit management
System Integrators

System Integrators (currenza c²)

  • 4-price adapters for application in parallel systems e.g. electromechanical vending machines:
    • with Jones connector
    • with 15-pin connector
    • API with NRI display
    • API with Fuji display
  • NRIHIDAPI.dll program library for system integration of serial coin changers
Security Package

Security Package

  • 24/7 security for your cash
  • Electronic recognition of coin cassette and validator removals
  • Continues working even when machine power is off
  • All activities and events registered in standard EVA-DTS format
